Cisco icons.
A real Visio stencil.
One unified, current release of Cisco's modern icon library: working shape search, nine connection points, network shape data, dark-mode twins, and Metric and US-unit builds. Drop. Connect. Document. Done.
Cisco's icons are scattered, dated, and unfinished
The Brand Center topology glyphs are split across three colour-treatment downloads in the legacy .vss format. Hardware stencils sit in hundreds of per-product zips with newer models missing. And the modern flat icon library that Cisco's own design guides use isn't published as Visio stencils at all. None of it has working search, connection points, or shape data.
One release, fully equipped, machine-verified
Visio-Cisco unifies the modern flat library into 486 masters across 11 groups, generated programmatically and verified against a per-master contract on every build. Search that finds things, anchors that connectors glue to, shape data your inventory can populate, and a white twin for every near-black logo.
Every master,
fully loaded.
The same contract applied to all 486 icons, automatically.
Search that works
Keywords written exactly where Visio's indexer reads them, shaped by an empirical lab against Microsoft's own stencils. Type "border node" and find it.
Nine connection points
North, East, South, West, four corners, and SouthOfText on every icon. Connectors glue to anchors, not to bounding boxes.
Network shape data
Hostname, ManagementIP, Model, SerialNumber, Site, Role, VlanIds on every master. Populate from Catalyst Center, NetBox, or IPAM exports.
Dark-mode twins
Thirty-one near-black logos ship a white -DM variant with white captions, so dark-canvas designs stay legible.
Pick your units,
start drawing.
Visio only shows stencils that match your page's measurement units. Check via Design, Page Setup, Measurement units; then grab the matching set.
Centimetres / millimetres
Most of the world: AU, EU, UK metric drawing templates.
download Metric zipSVG + PNG files

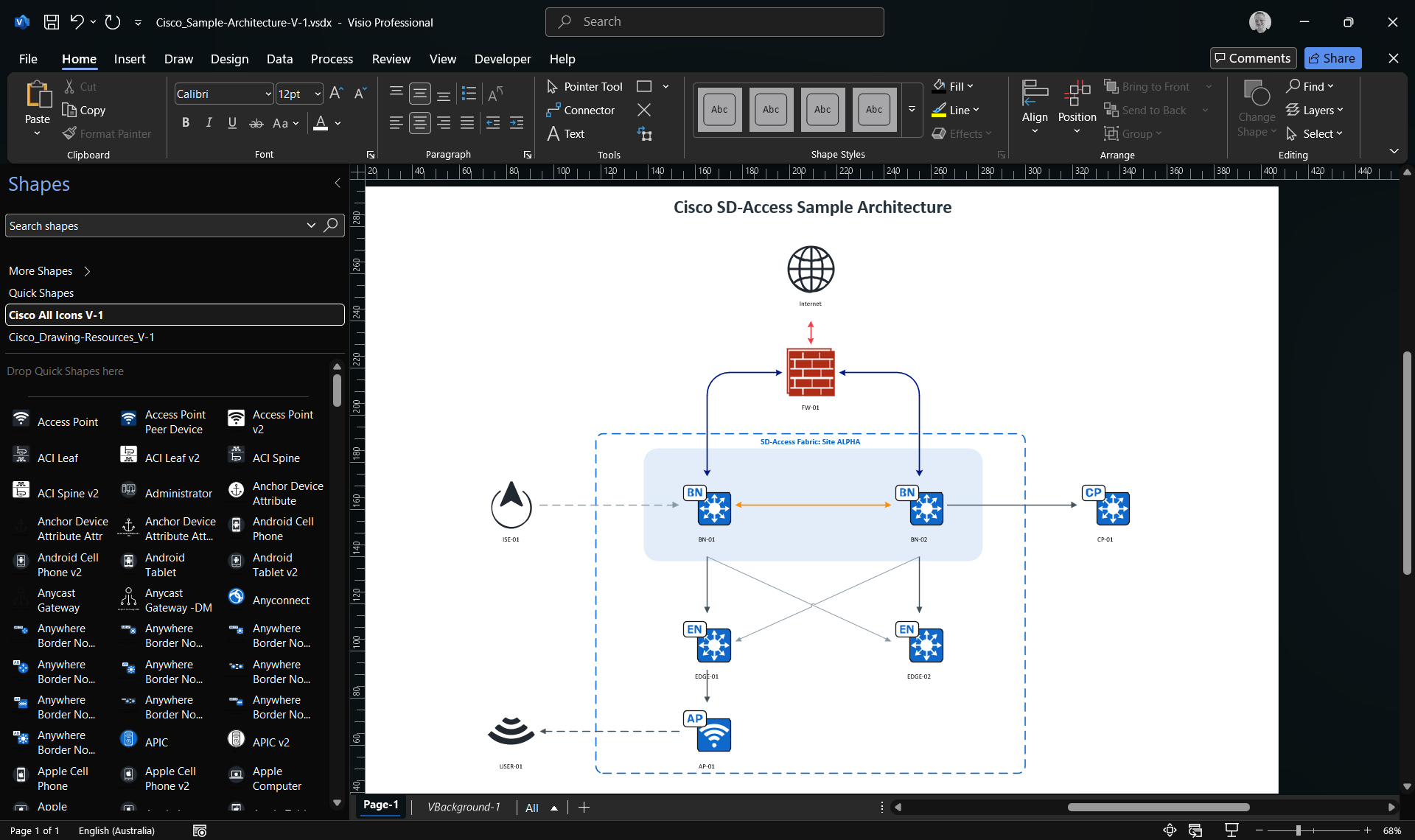

All 486 per-icon SVGs and scale-matched PNG renders, free, plus a sample architecture drawing on the release page.
package_2 Release V-1Icon artwork © Cisco Systems, Inc., used per Cisco's published icon terms. Community project; not affiliated with or endorsed by Cisco.
